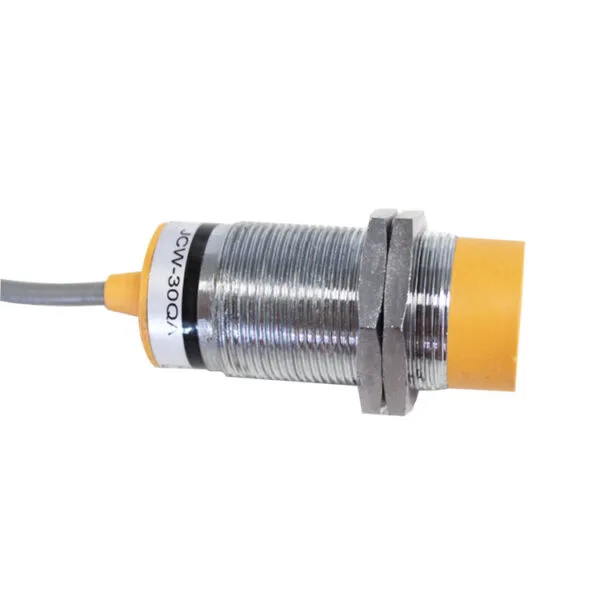

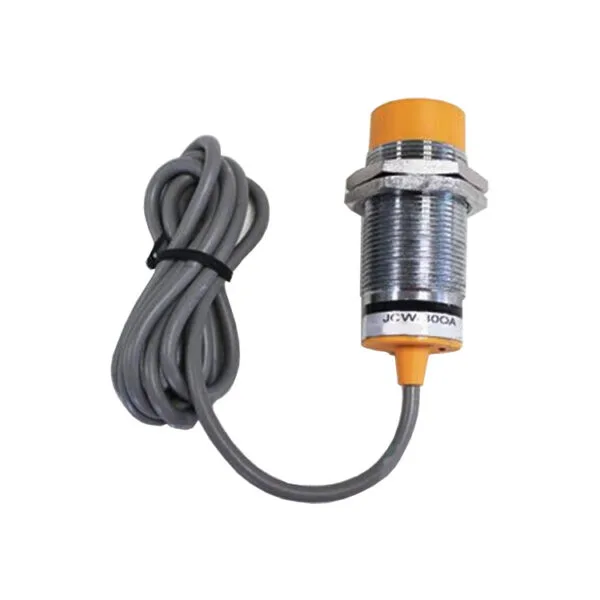

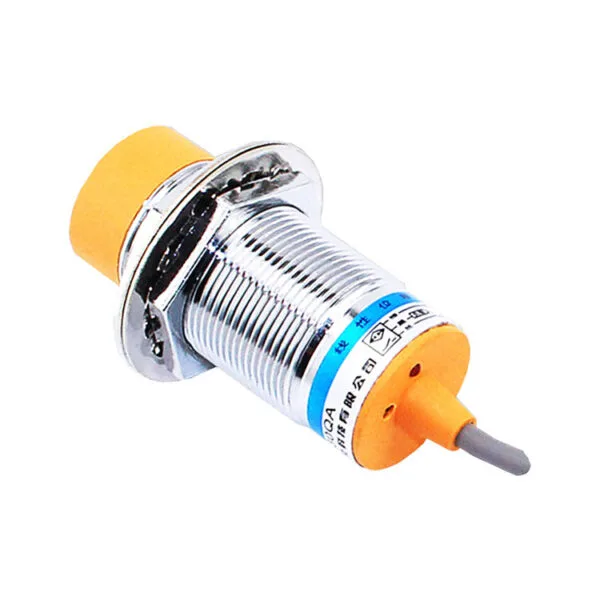

JCW-30QA

Model Number: JCW-30QA

Usage: Position Sensor

Theory: Inductance Sensor

Output: Switching Transducer

Product name: cylindrical proximity switch

Detection distance: 1-13mm

Installation method: Unshielded proximity switch

Output signal: DC (NPN / PNP / 2 lines) or AC (2 lines / 3 lines)

Response frequency: 200HZ

Standard inspection object: Iron 30*30*1mm

Operating Voltage: DC type:12~24V. AC type:110-220V

Lag distance: Less than 10% of the detection distance

Waterproof grade: IP67 (IEC specification)

1.  Dimension





2. Specifiation
