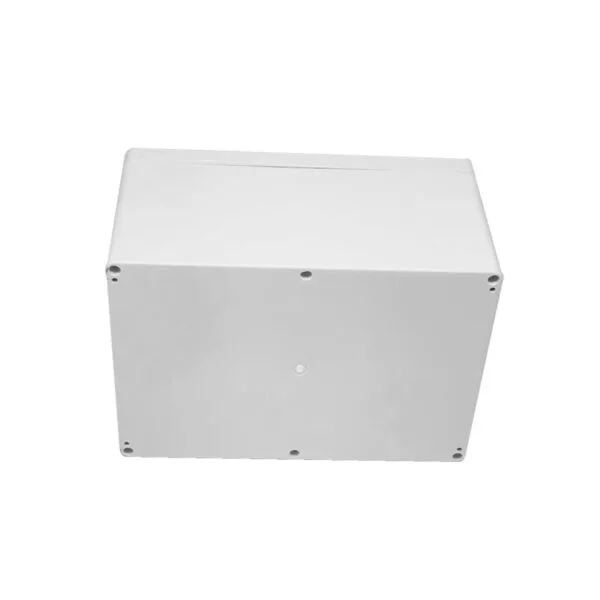

F Series Waterproof Junction Enclosure: A Cost-Effective Solution with Solid Protection

The F Series Waterproof Junction Enclosure is a more cost-effective alternative to the AG Series, offering reliable protection for electrical components while still being budget-friendly. While it may not provide the same high-end protection as the AG Series, it is still a strong contender for many applications. Below is a detailed comparison, along with the advantages and limitations of the F Series.

Cost Advantage of F Series Enclosures

The F Series enclosures are typically made from more affordable materials and feature simpler designs than the AG Series, resulting in a more economical price point. This makes the F Series a compelling choice for businesses or projects looking for a cost-effective solution. The AG Series, being a premium option, offers a more durable build and higher IP ratings (up to IP67 in some models), but for many use cases, the F Series provides sufficient protection at a fraction of the cost.

IP65 Rating: Adequate Protection for Many Applications

The F Series enclosures are generally rated with an IP65 protection level, which means they are dust-tight and resistant to water jets from any direction. While this rating is suitable for most environments, it is lower than the IP67 and IP68 ratings available in the AG Series. Here’s how the IP65 rating compares to higher ratings:

• IP65 (F Series):
  • Dust-tight: Prevents any dust from entering the enclosure, safeguarding internal components from dust and fine particles.
  • Water-resistant: Can withstand low-pressure water jets or sprays from any direction, but cannot be submerged in water.
• IP67 (AG Series):
  • Dust-tight: No dust ingress.
  • Waterproof: Can be immersed in water up to 1 meter deep for a specified period, offering enhanced protection in harsh weather or underwater applications.

Applications of F Series Enclosures

Given the IP65 rating, the F Series enclosures are ideal for applications where:

• Dust Resistance is crucial, but there is little exposure to extreme weather or water submersion. Common applications include outdoor lighting systems, telecommunications boxes, and control panels in areas with moderate moisture exposure.
• Cost Efficiency is a top priority. For many residential or commercial applications, the IP65 rating is sufficient to protect against rain, dust, or splashes. The F Series is perfect for projects that don’t require high-end waterproofing.
• Indoor Environments: These enclosures are great for factory floors, control systems, and automation panels, where only occasional water exposure (like splashes or cleaning) is expected.

F Series Offers More Size Options

Another notable advantage of the F Series is its wide range of sizes. The F Series offers more size variations compared to the AG Series, making it a versatile choice for a variety of projects. Whether you need a compact enclosure for small electronics or a larger enclosure for more complex systems, the F Series can be customized to fit your needs. This flexibility in sizing ensures that businesses have a better chance of finding the perfect enclosure for their specific installation requirements.

Limitations of F Series Compared to AG Series

Despite its affordability, the F Series may not be suitable for demanding outdoor or industrial applications. If your project involves:

• Heavy Rain or Flood-Prone Areas: The IP65 rating may not provide enough water resistance, especially in environments prone to flooding or frequent heavy rain. For these situations, enclosures with higher IP ratings like IP67 or IP68 (found in the AG Series) would be necessary.
• Chemical or Saltwater Environments: In marine environments or chemical plants, the F Series might lack the additional protection needed against corrosion or prolonged exposure to harsh elements. The AG Series offers a higher level of waterproofing, which is critical in such settings.

Why Choose the F Series Over the AG Series?

While the AG Series offers superior protection with its IP67 rating, the F Series is an excellent choice for applications where:

• Cost is a Major Concern: If your project requires protection against dust and moderate water exposure but does not need the extreme waterproofing of the AG Series, the F Series provides a solid solution at a lower price point.
• Indoor or Sheltered Outdoor Applications: In environments where the enclosure will not be exposed to extreme weather or submersion, the IP65-rated F Series is more than sufficient.
• Fast Delivery for Less-Critical Projects: For less demanding projects that do not require the additional durability of the AG Series, the F Series is an ideal solution due to its lower cost and quicker availability.

Custom Features in F Series Enclosures

The F Series is not only affordable but also customizable to meet specific needs. Some of the customization options include:

• Color Options: Choose different colors for improved visibility or to match branding requirements.
• Size Customization: Tailor the enclosure size to meet specific installation needs.
• Cable Glands and Mounting Holes: Ensure easy installation of electrical components.
• Sealing Gaskets: Ensure proper sealing and prevent water ingress, even in less demanding conditions.

Conclusion

The F Series Plastic Waterproof Junction Enclosures offer an affordable and effective solution for applications that do not require high levels of waterproofing or submersion protection. With its IP65 rating, the F Series provides reliable performance in environments where dust and moderate water exposure are the main concerns. Moreover, the F Series offers a wider range of sizes, making it a more flexible option for diverse installation needs.

If your project requires protection from dust and occasional water exposure without the need for extreme waterproofing, the F Series is an excellent choice, offering reliable performance at a lower cost. However, if your environment involves harsher conditions or prolonged exposure to water, opting for the AG Series might be the better solution.
